| Brand Name : | HJD |
| Model Number : | GM900 |
| Certification : | CE |
| Price : | Negotiatable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100 kits/month |
| Delivery Time : | 10~15 working days |
After-sell service:

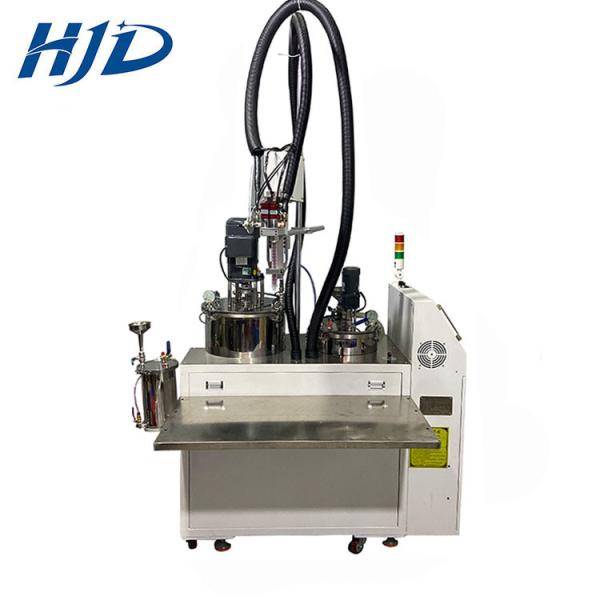

Super glue dispenser peristaltic pump main functions:
Application for belowing products:
LED products ,Electronic components,Crafts
Such as: LED display, Wall washer light, LED bar, LED strip, Ads module, Mutual inductor, Capacitor, Power supply, Transformer, Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. etc
ATTENTION!!!
Technical Parameters
| Model No. | GM900 |
| working Area | 700(X)*700(Y)*80(Z) |
| Maximum Speed | 500mm(XY )/300mm(Z)/sec |
| Repeat Accuracy | ±0.02mm |
| Mixing Ratio | 100:100-100:10(1:1-10:1) |
| Metering Precision | ±1% |
| Outflow Speed | 0.1g/sec-15g/sec |
| Mixing Precision | ±1% |
| mixing Mode | Dynamic mixing /Static mixing |
| Glue Viscosity | Lower than 20000CPS(mPa·s) |
| Control Mode | PLC + Touch Screen |
| Control System | Independent R&D |
| Measuring Pump(optional) | Piston pump/Gear pump/Screw pump |
| Drive Mode | Stepping motor & sync belt (Optional servo motor & ball screw) |
| Programming | Teach Pendant for programming |
| Machine Dimension | 1500(L)*900(W)*1500(H)mm |
| Working Voltage | AC 220V 50/60HZ |
| Power Requirement | 4KW |
| Air Pressure Requirement | 4.5-8KG |
| Weight | Approx 200 kg |
| Work Environment | Humidity: 20%~90%RH; Temperature: 0~+40°c |
|
|
