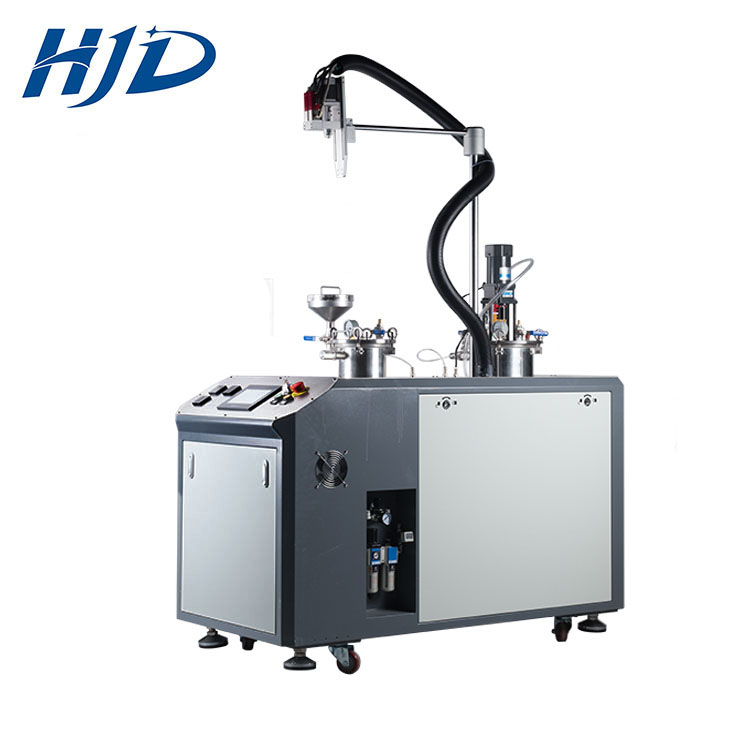

High efficiency multifunction semi automatic epoxy AB glue mixing machine factory price
Technical Parameters
| Model No. | GM900 |
| working radius | 1-3 m(adjustable) |
| Mixing Ratio | 100:100-100:10(1:1-10:1) |
| Metering Precision | ±1% |
| Outflow Speed | 0.3g/sec-15g/sec |
| Mixing Precision | ±1% |
| mixing Mode | Dynamic mixing /Static mixing |
| Glue Viscosity | Lower than 20000CPS(mPa·s) |
| Control Mode | PLC + Touch Screen |
| Control System | Independent R&D |
| Measuring Pump(optional) | Piston pump/Gear pump/Screw pump |
| Drive Mode | Stepping motor & sync belt (Optional servo motor & ball screw) |
| Programming | Teach Pendant for programming |
| Machine Dimension | 1350(L)*700(W)*1500(H)mm |
| Working Voltage | AC 220V 50/60HZ |
| Power Requirement | 3.55KW |
| Air Pressure Requirement | 4.5-8KG |
| Weight | Approx 340 kg |
| Work Environment | Humidity: 20%~90%RH; Temperature: 0~+40°c |
Applications:
LED products ,Electronic components,Crafts
Such as: LED display, Wall washer light, LED bar, LED strip, Ads module, Mutual inductor, Capacitor, Power supply, Transformer, Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. etc
After-sell service:
Super glue dispenser peristaltic pump main functions:
|
|
