| Brand Name : | HJD |
| Model Number : | CO2 |
| Certification : | CE |
| Price : | Negotiatable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100 kits/month |
| Delivery Time : | 10~15 working days |

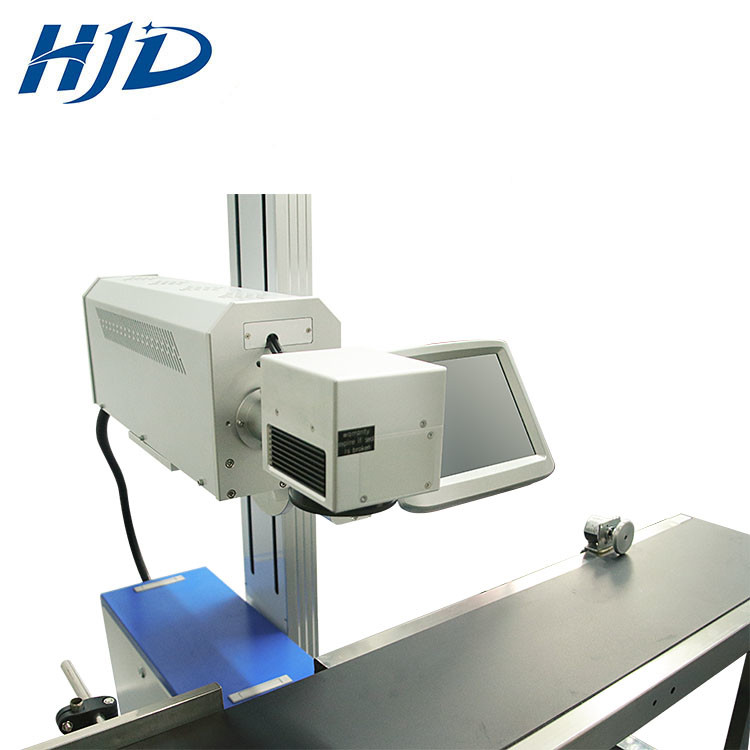

Carbon dioxide laser marking machine is often used for marking
non-metallic materials .
Such as bamboo products,wood ,paper,ABS,PVC,epoxy,resin,acrylic
Leather,glass,architechtural ceramics,rubber,etc.are widely used in
pharmaceutical packaging,food packaging,beverage
packaging,plastics,textile,leather,wood,handicrafts,electronic
components,communications,closck glasses,printing and other
industries.
ATTENTION!!!
Technical Parameters
| Laser | Metal RF C02 Laser machine |
| Power | 30W |
| Laser wavelength | 10.6um |
| Optical quality M2 | <1.2 |
| Marking area | 110*110mm(other ranges are optional ) |
| Carve speed | ≤7000mm/s |
| Min character | 0.5mm |
| Min linewidth | 0.1mm |
| Repeated accuracy | ±0.01 |
| Power supply | 220V/50Hz |
| Operating system | Windows ce 6.0 |
| Cooling mode | Built-in air cooling |
| Control interface | Standard USB |
| Support marking contents | Common graphics,variable text,date,streamer,bar code,qr code,etc |
| Support font | Single line,double line,dot matrix |
| File format | Support common vector file formats(eg :dxf,plt,dot format) |
| Marking style | Support static marking ,flight marking |
2. Description of equipment composition and configuration
| Configuration | Part names | Brief description |
| Laser | Metal RF C02 Laser machine | |
| Marking indicating system | Built-in outline,size ,direction and position indication | |
| Lens system | Wave length,full series lens set | |
| Cooling system | Air cooling | |
| Laser vibrating lens | Integrated optical mounting design,professional | |
| Control supply | 220V Universal power integration | |
| Professional laser control card | winCE touch marking software | |
| Computer and marking software | 10 inch touch screen system | |
| Special stand | Lifting platform |
|
|
