Shenzhen Horizons Technology Co., Ltd
7 Years
| Ask Lasest Price | |
| Brand Name : | HJD |
| Model Number : | ZT01 |
| Certification : | CE |
| Price : | Negotiatable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 3000000pcs/week |
| Delivery Time : | 3 working days |

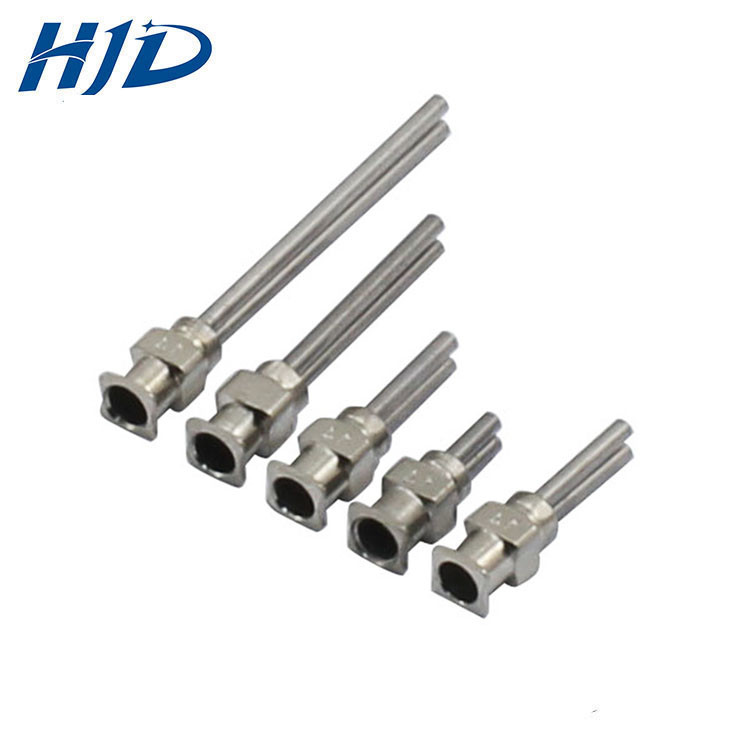

SS all stanless steel machine glue Syringe Needle for glue depensing adhesive
Product performances:
It is applicable to complicated surface by dispensing on the corners which prevents scraping and simplifies the dispensing procedure.
The length of pin can be cut accordingly.
Material : SS
NOTE: we support all kinds of needles , please contact us for inquiry.
Product Parameter | ||||||
| Model | Inner Diameter (mm) | Outer Diameter (mm) | Pin length | |||
| 10G | 2.7 | 3.43 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 11G | 2.64 | 3.06 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 12G | 1.82 | 2.26 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 13G | 1.65 | 2.10 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 14G | 1.54 | 1.83 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 15G | 1.43 | 1.65 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 16G | 1.25 | 1.58 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 17G | 1.07 | 1.48 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 18G | 0.84 | 1.25 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 19G | 0.67 | 1.06 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 20G | 0.60 | 0.90 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 21G | 0.52 | 0.81 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 22G | 0.41 | 0.71 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 23G | 0.33 | 0.64 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 24G | 0.30 | 0.55 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 25G | 0.26 | 0.51 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 26G | 0.23 | 0.45 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 27G | 0.21 | 0.41 | 6.4mm | 12.7mm | 25.4mm | |
| 28G | 0.16 | 0.35 | 6.4mm | 12.7mm | 25.4mm | |
| 30G | 0.13 | 0.31 | 6.4mm | 12.7mm | 25.4mm | |
| Pin all length | 18mm | 24.3mm | 37mm | 49.7mm | ||
|
|
