| Brand Name : | HJD |
| Model Number : | ZT01 |
| Certification : | CE |
| Price : | Negotiatable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 3000000pcs/week |
| Delivery Time : | 3 working days |

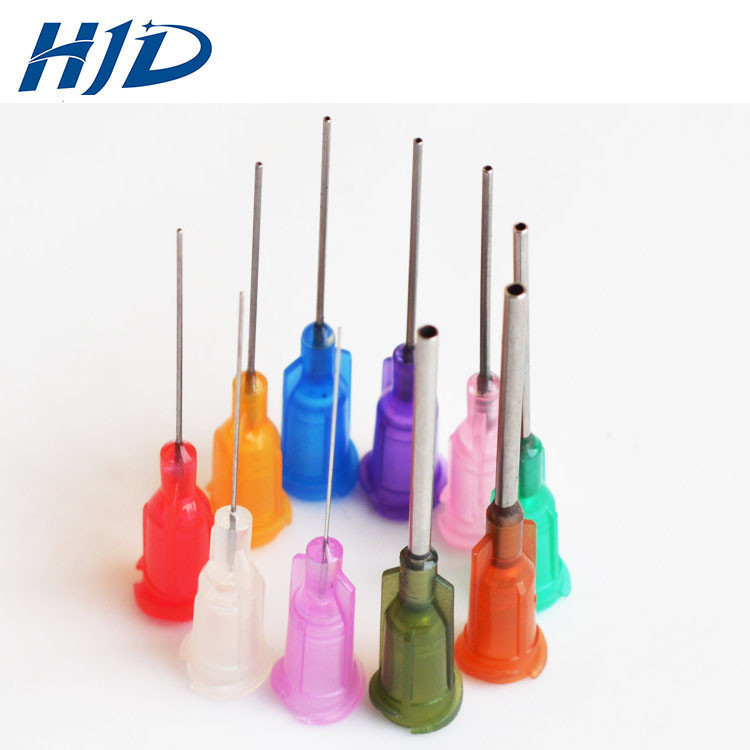

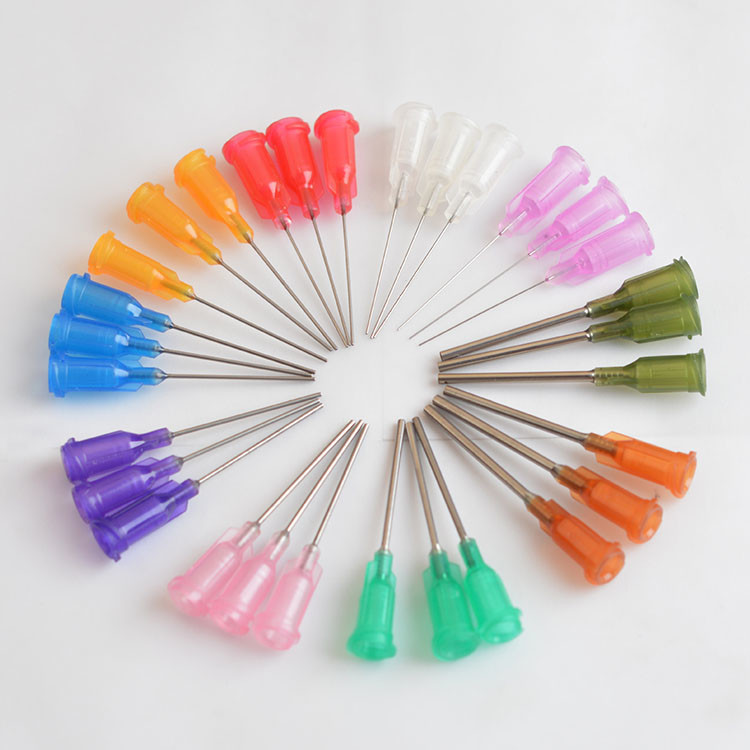

ZT01 Screw seat stainless steel dispensing needle
Product performances:
It is applicable to complicated surface by dispensing on the corners which prevents scraping and simplifies the dispensing procedure.
The length of pin can be cut accordingly.
Seat material : PP
Pin material : SS
Product Parameter | ||||||
| Model | Inner Diameter | Outer Diameter | Pin length | |||
| 14G Olive green | 1.52 | 1.83 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 15G Amber | 1.37 | 1.65 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 18G Green | 0.84 | 1.27 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 20G Pink | 0.60 | 0.91 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 21G Purple | 0.51 | 0.82 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 22G Blue | 0.41 | 0.72 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 23G Orange | 0.34 | 0.64 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 25G Red | 0.26 | 0.51 | 6.4mm | 12.7mm | 25.4mm | 38.1mm |
| 27G Transparency | 0.21 | 0.41 | 6.4mm | 12.7mm | ||
| 30G Light purple | 0.16 | 0.31 | 6.4mm | 12.7mm | ||
| 32G Yellow | 0.11 | 0.23 | 6.4mm | |||
| Needle overall length | 23.6mm | 30mm | 42.7mm | 55.4mm | ||
|
|
