| Brand Name : | HJD |
| Model Number : | HJD-31S |
| Certification : | CE |
| Price : | Negotiatable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 3000pcs/month |
| Delivery Time : | 3~5 work days |

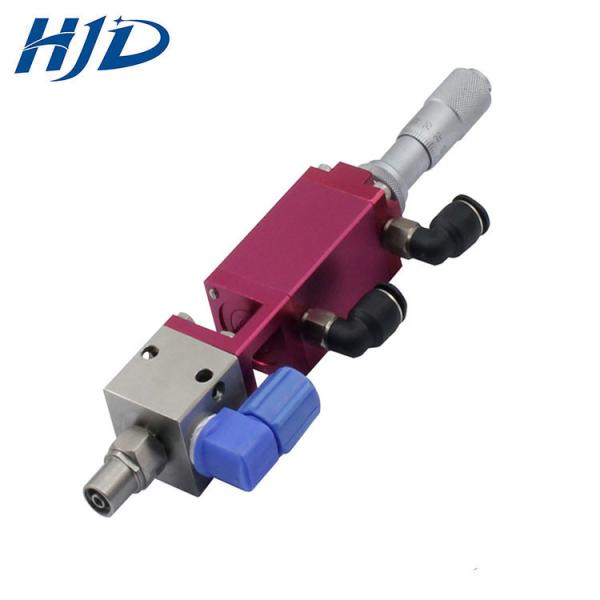

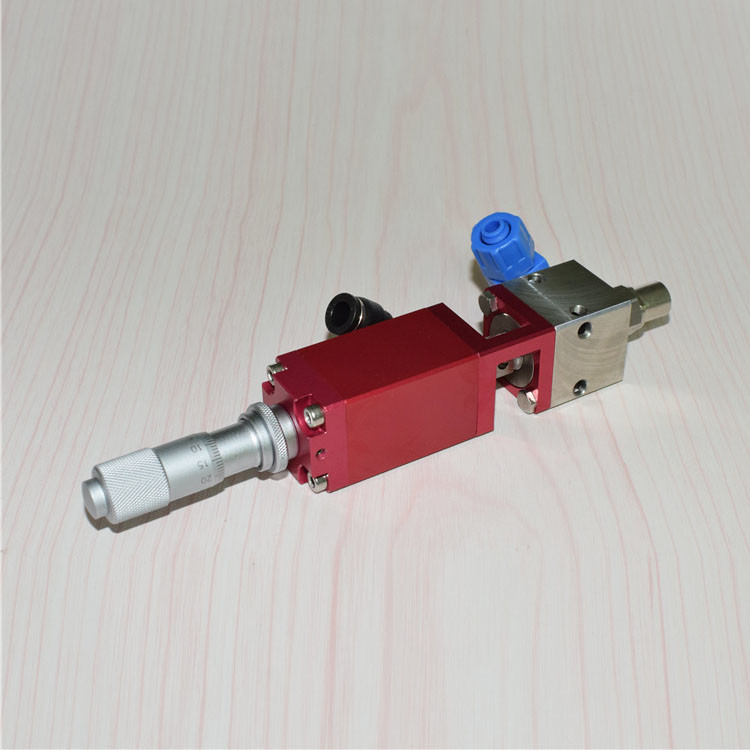

single and double dispensing valve for glue dispenser machine
Double acting thimble dispensing valve
Apply to very thin glue, such as universal glue, UV glue, water-base cement,
Alcohol....and other low-viscosity liquid.
Not suitable for anaerobic adhesive !!!
| Brand | HJD (Horizons) |
| Model No. | HJD-31S |
| Working air pressure | 4~7Kg/cm2 |
| Minium output | 0.001ml |
| Suitable viscosity | 1-1000 cps |
| Main material | Aluminium alloy + stanless steel |
| Weight | 460g |
| Operating frequency | <600/min |
| Material input perssure | <10kg |

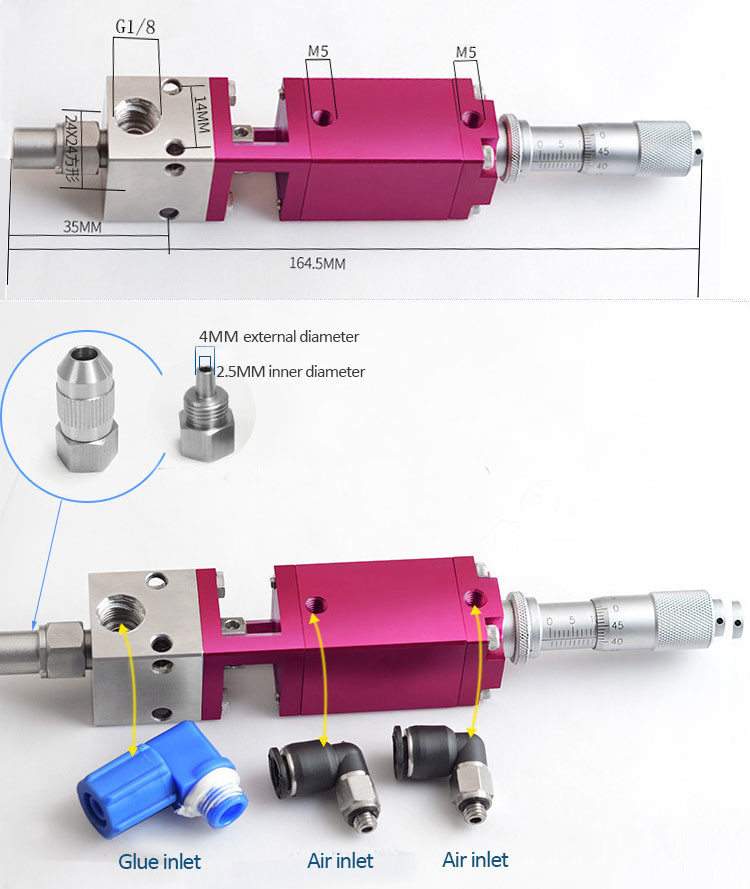

| Material input size | G1/8 |
| Application | for speakers, products sealing, capacitors &mould fulling, circuit board......other liquild glue. |
|
|
